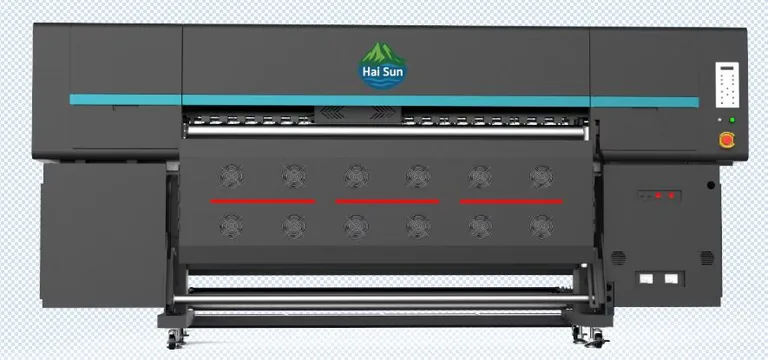

Dye-Sublimation Printer — 1900 mm, 8 Second-Gen Heads
CS8 PRO PLUS
The CS8 PRO built around the second-generation Epson i3200-A1-2 print head.
- Print width
- 1900 mm
- Max productivity
- Talk to us for this figure Tell us your configuration and we'll send you the figure for it.
- Ink configuration
- 8-colour — CMYK, LC, LM, LK, G, FR, FY
Connect with us for a quotation tailored to your production.
Introduction
The CS8 PRO PLUS takes the CS8 PRO platform a shop already knows — the same 1900 mm frame, ink system, drive, heating and feed — and fits it with the second-generation Epson i3200-A1-2 print head. Everything learned on one machine carries straight to the other, and the two share a spare-parts kit. The A1-2 is the current head generation and the reason to specify this build: on our sixteen-head platform, the same A1 → A1-2 change adds roughly a third more output, so expect significantly higher production speed than the CS8 PRO. Talk to us about your configuration and we'll size the machine — and the speed — to your production.
Core advantages
- Second-generation print head Epson i3200-A1-2 in place of the A1 — the current head generation, and the single difference between this machine and the CS8 PRO.
- Variable droplet, 3200 dpi VSDT variable droplet technology with a 3.8 pL minimum and 12.3 pL maximum drop, and six or more variable droplet sizes up to 3200 dpi.

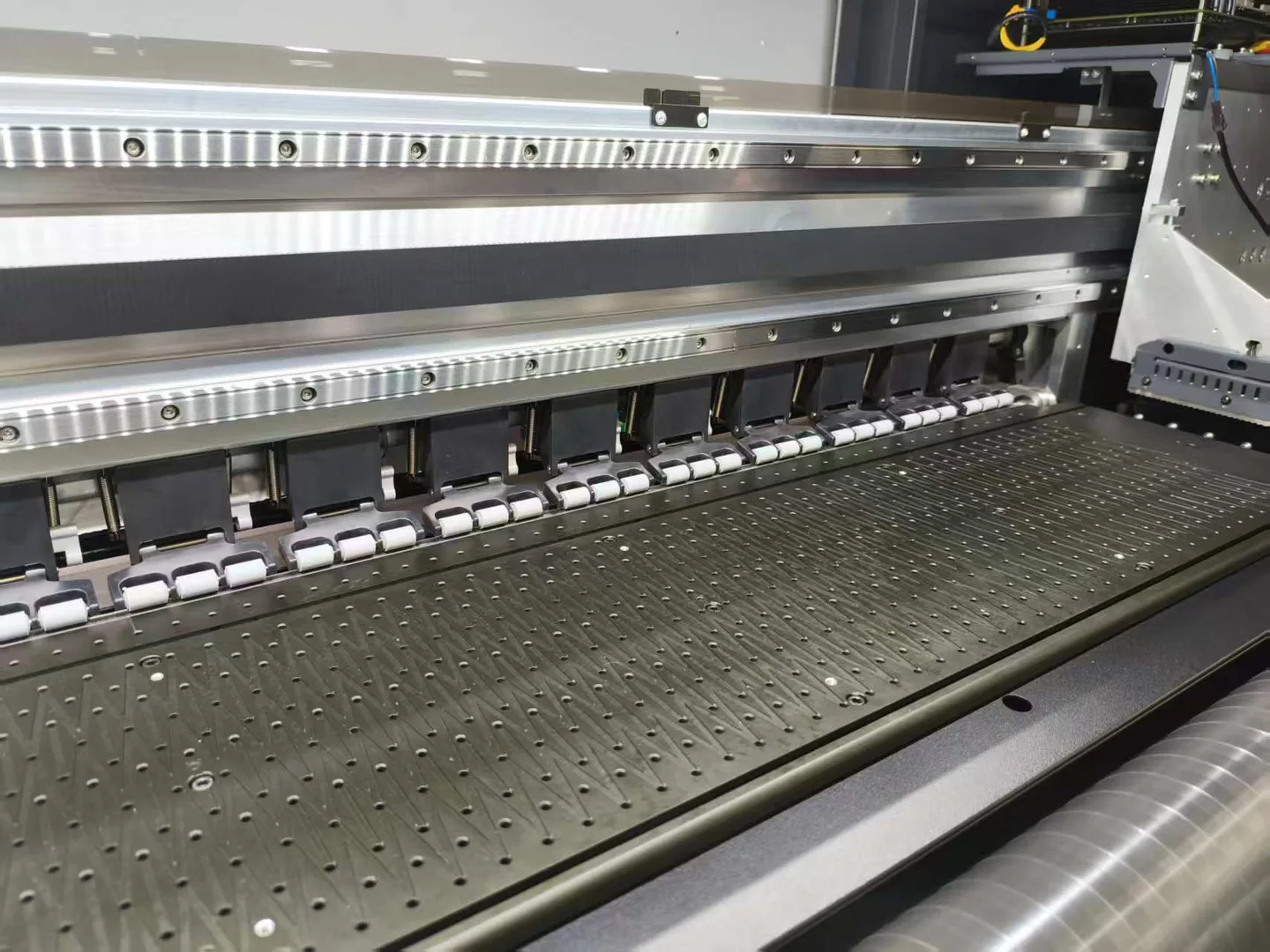

- Magnesium-aluminium platform Print platform and crossbeam in high-strength aluminium-magnesium alloy — higher rigidity and precision at lower weight.
- Imported linear guides Hiwin or THK high-speed guide rail: higher precision, longer life, lower noise.

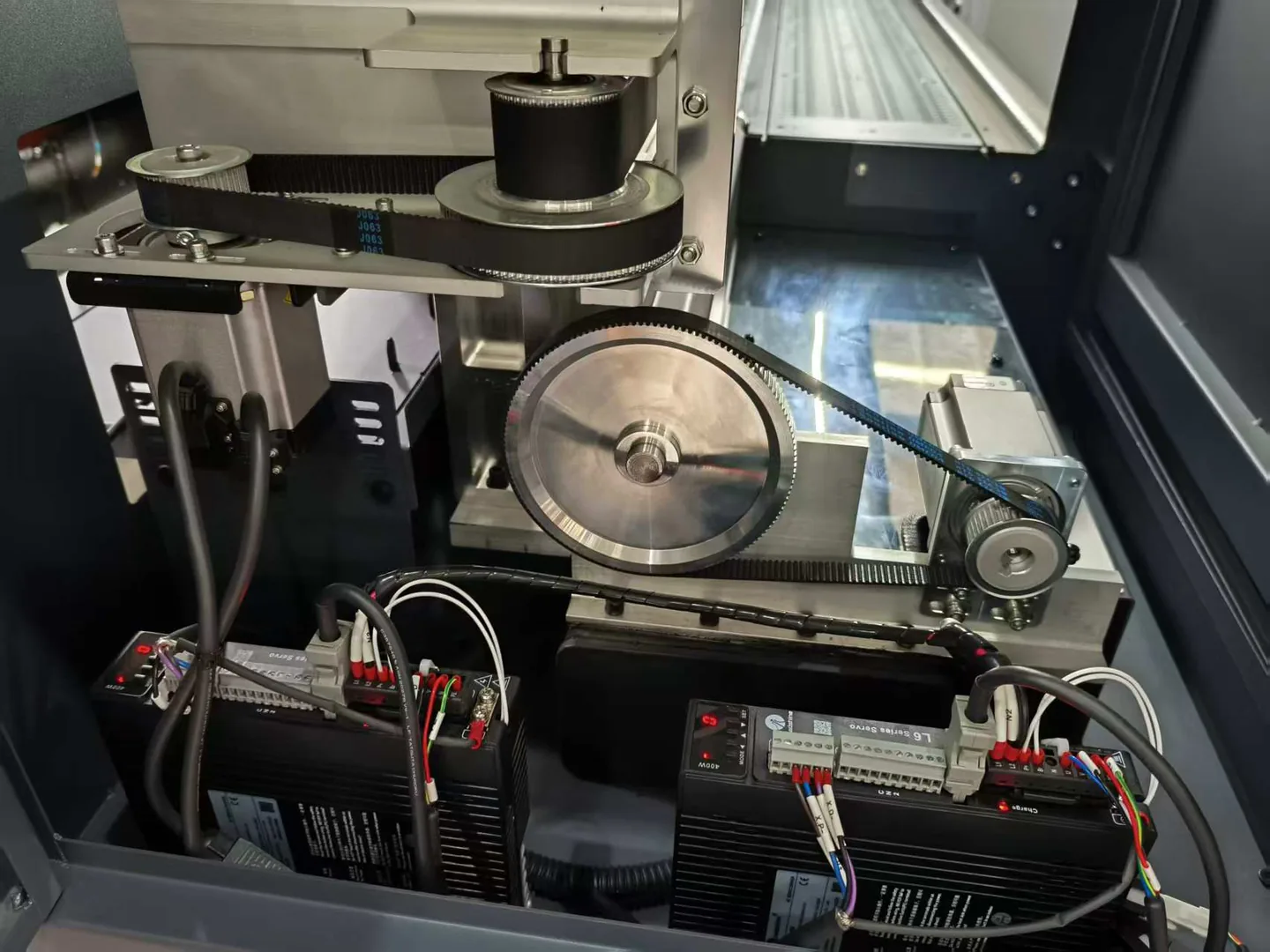

- AC servo drive Leadshine AC servo motor control for high resolution, stability and repeatable performance.
- Optical-fibre data path 1.25G bi-directional optical fibre transmission keeps image data stable at full speed.

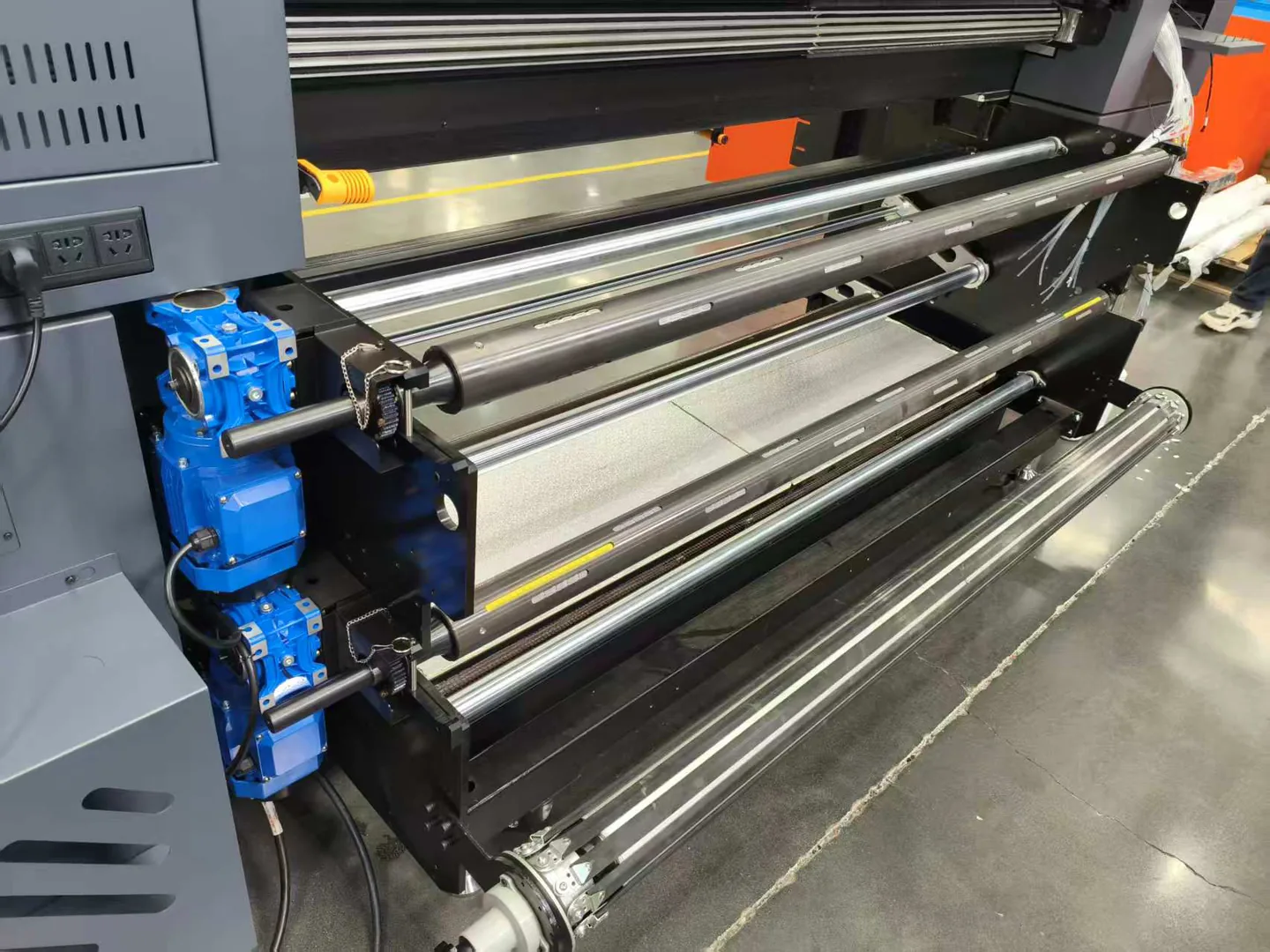

- Constant-tension feed and take-up Industrial auto feed and take-up with air shaft, running rolls of up to 500 m of ultra-thin material.
- Sectional infrared heating External infrared heating and cooling system with independent subdivision control and sectional heating.
Technical specifications
Print engine
| Print head type | Drop on demand piezoelectric head |
|---|---|
| Print head | Epson i3200-A1-2 (2nd generation) |
| Number of print heads | 8 |
| Arrangement | Staggered |
| Resolution | Up to 3200 dpi, six or more variable droplet sizes |
| Droplet size | VSDT variable droplet, 3.8 pL minimum to 12.3 pL maximum |
Print width and media
| Max print width | 1900 mm |
|---|---|
| Media type | Sublimation paper |
| Roll diameter and weight | Max. 220 mm, 40 KG |
| Feeding and take-up system | Industrial auto-feeding and taking-up system with air shaft |
| Winding diameter | Supports 500 m large winding diameter |
Ink
| Ink type | Sublimation |
|---|---|
| Colours | CMYK, LC, LM, LK, G, FR, FY (8-colour) |
| Ink supply | 5 L large-capacity continuous supply, siphon |
Control and software
| Image formats | jpeg, tif, pdf, png |
|---|---|
| Operating system | Win7 / Win8 / Win10 (64bit) |
| Control screen | Single colour LCD |
| Interface language | English |
| RIP software | Photo print / other RIPs as optional |
| Data interface | USB3.0 optical fibre |
Mechanics, power and environment
| Motor | Leadshine AC servo |
|---|---|
| Guide rail | Hiwin or THK |
| Heating system | Integrated heating system, extended infrared heating and cooling system |
| Electrical specification | AC 220V 50-60Hz |
| Operating temperature | 15 to 35 °C (20 to 32 °C suggested) |
| Operating humidity | 20 to 80% (40 to 60% suggested) |
| Machine dimensions | 3270 × 1230 × 1840 mm (L × W × H) |
| Packed dimensions | 3900 × 750 × 1100 mm / 2600 × 1100 × 1200 mm (L × W × H) |
| Body colour | Blue black |
| Warranty | Control system for 1 year |
Application fields
- Sportswear & activewear
- Fashion & garment
- Home textiles
- Cushions & dakimakura
- Tablecloths
- Floor mats
- Curtains
- Soft signage
- Wallpaper
